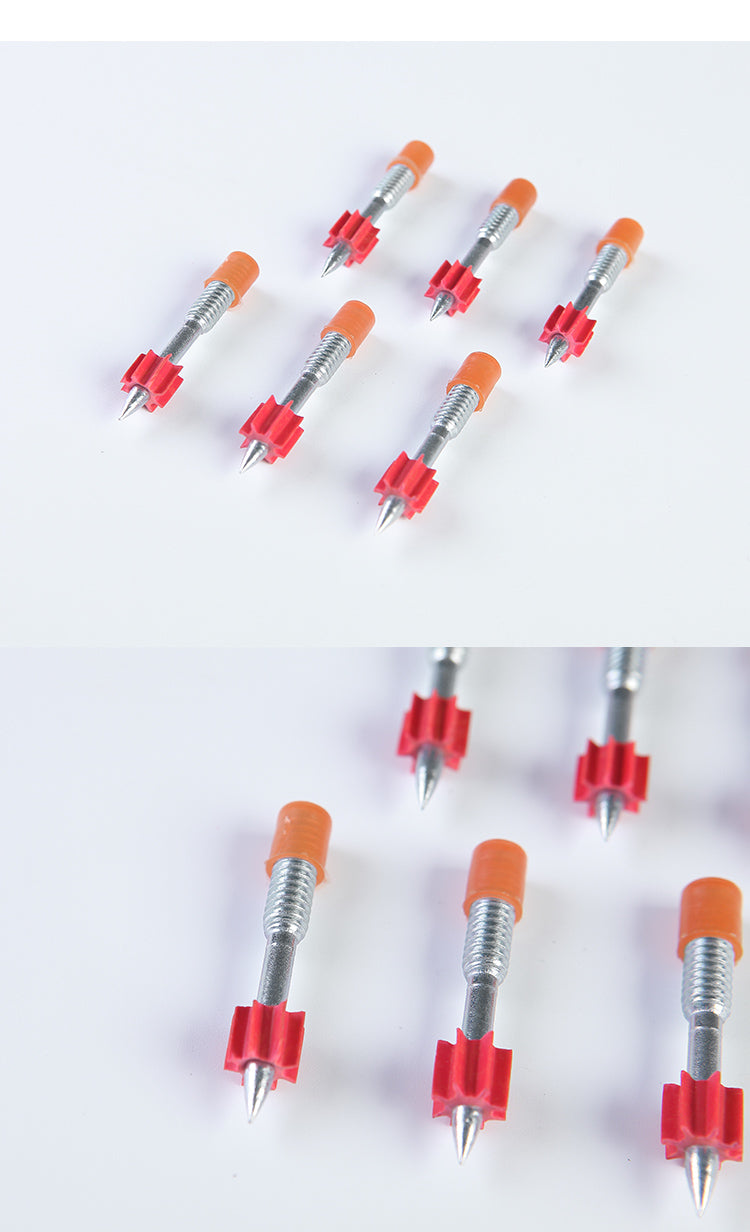

M1/4 Threaded Pins

The M1/4 range combines a threaded section with a drive-pin shank. Compare the five model references below, then send the connection detail and tool reference with your selected shank length.

Model: M1/4
MOQ: Contact sales
Packaging: Discuss box and carton requirements

Dimensions

Thread length: 20 mm
Shank diameter: 3.7 mm
Plastic cap diameter: 8 mm

Shank lengths & model references

M1/4-20-22S8: 22 mm
M1/4-20-27S8: 27 mm
M1/4-20-32S8: 32 mm
M1/4-20-42S8: 42 mm
M1/4-20-52S8: 52 mm
